Features

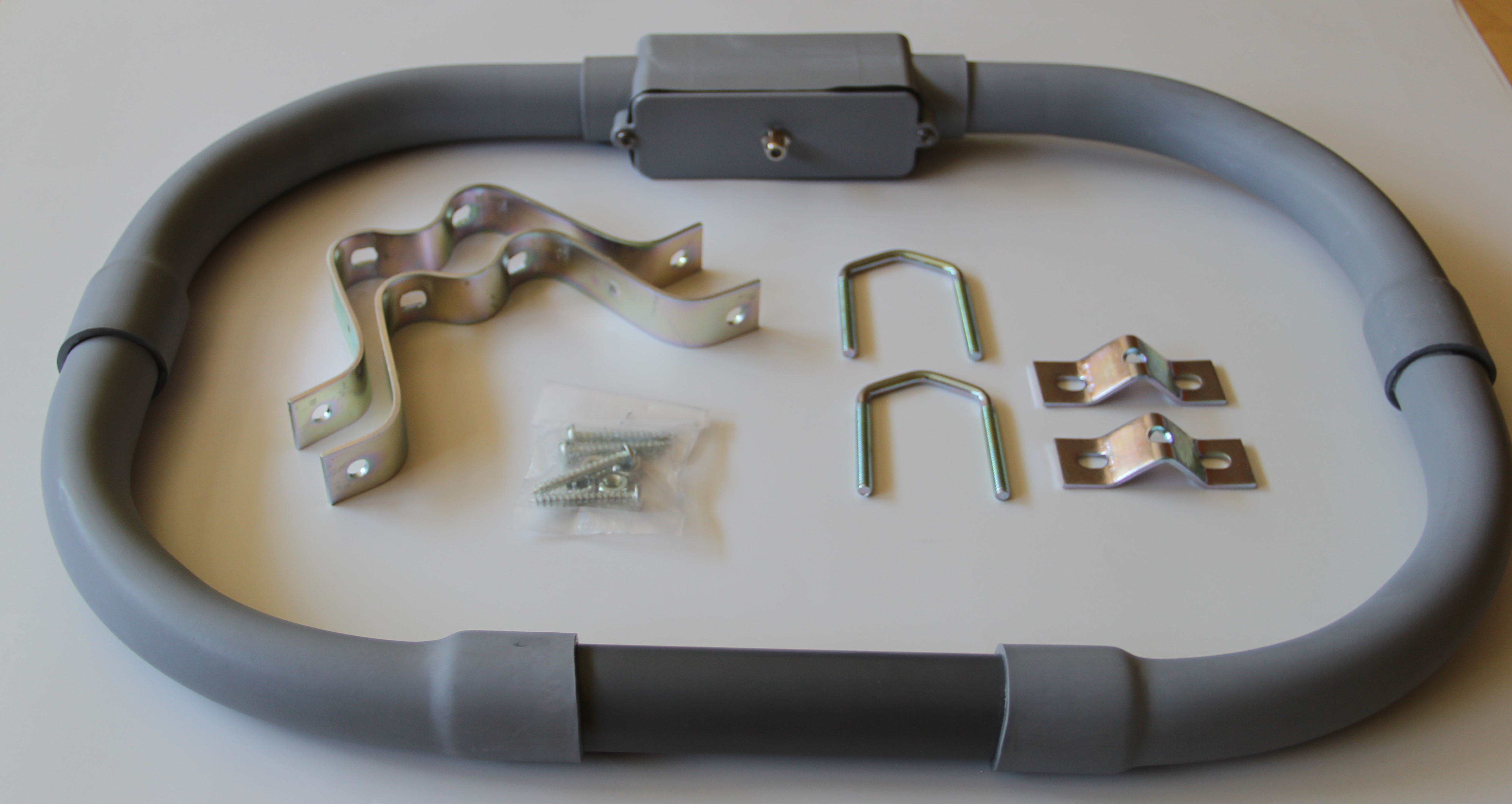

• The Passive AM Loop Antenna is shipped with Mounting Brackets.

Specifications

Frequency Response  (Below Compressor and Limiter Thresholds)

kO.5 dB, 10Hz 15kHz.

Noise

Better than 70dB below 100% modulation, 10Hz 20kHz

Distortion

~0.5% THD. 20Hz 15kHz: ~0.2% THD, 50Hz 10kHz.

Inputs (Left and Right)

Active-balanced, bridging; accept “zero-level” program Inputs between -2OdBu and +lOdBu.

Outputs (Left, Right and Mono)

Active-balanced, 600-ohm resistive source: provide 100%-modulation levels adjustable between 0dBm and +15dBm.

Power

15/230VAC (internally strappable) i-10%, 50/60Hz; 20W.

Physical

5” x 19” x 8” (3U); 11 Ibs. (shipping)
