DAB/DAB+ Monitor/Receiver

Share on Facebook Share on Twitter

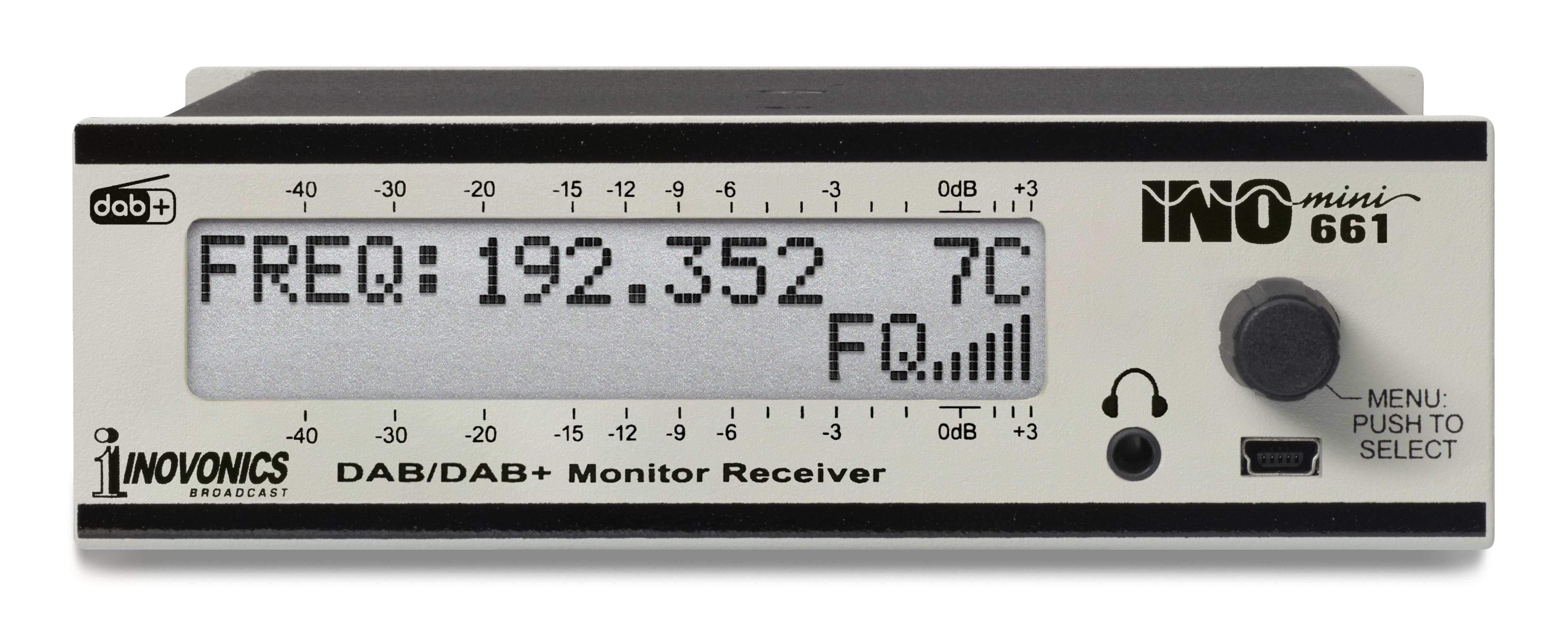

The INOmini 661 is Inovonics’ second-generation, small form-factor off-air monitoring receiver for EBU-specified DAB and DAB+ digital radio broadcasts.

The 661 provides high-quality confidence monitoring and delivers a dual audio feed with independently-adjustable analog and AES digital audio outputs.

Important text metadata that accompanies the broadcast can be read in multiple menu levels on the front-panel display. The large, easy to- read LCD screen also shows pertinent signal quality metrics and audio levels.

Front-panel and remote alarms indicate transmission problems, and the compact size of the INOmini 661 allows the mounting of three units in a 1U rack space.

Features


  • The INOmini 661 is a sensitive, DSP-based (SDR) receiver for EBU Band III DAB and DAB+ digital radio broadcasts.

  • Easy front-panel setup uses jog-wheel menu navigation.

  • A large LCD display shows essential signal parameters, demodulated audio levels, alarm conditions and program related metadata. Critical system menus are hidden.

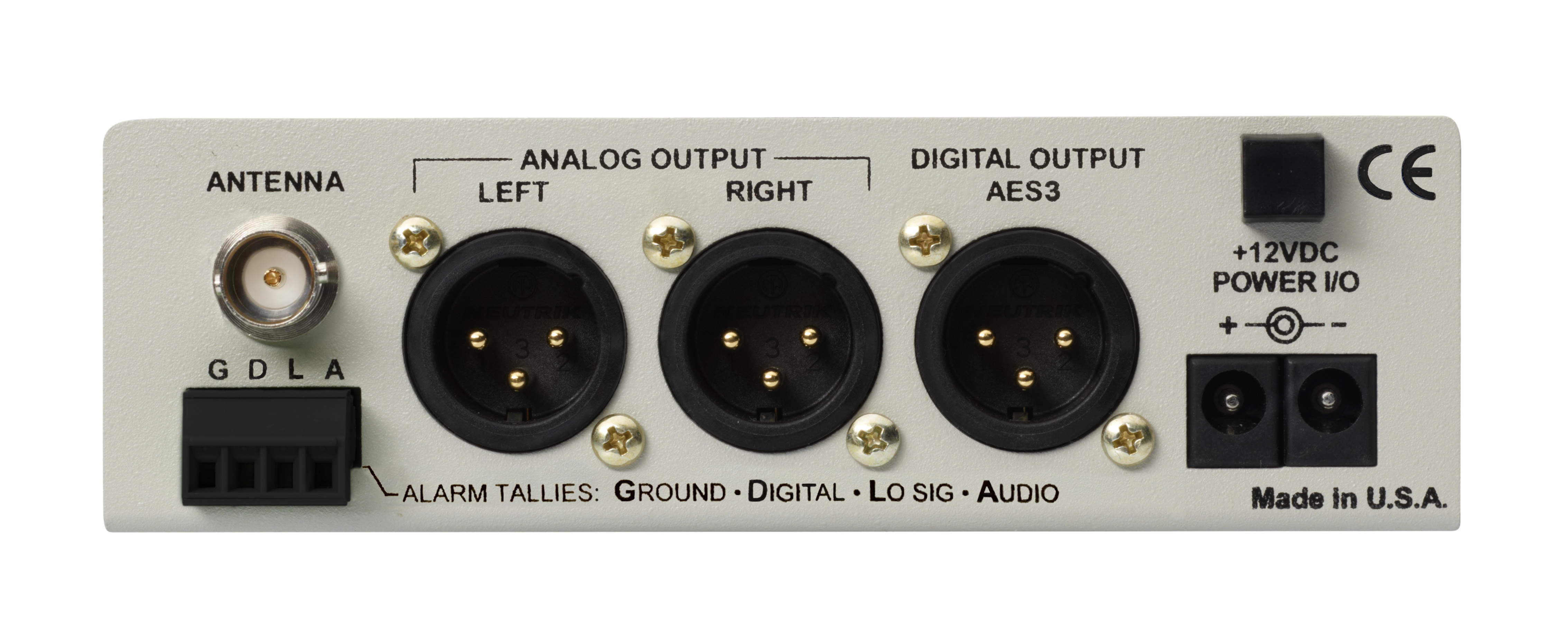

  • Balanced analog and AES-digital program line outputs are available simultaneously; levels are independently adjustable.

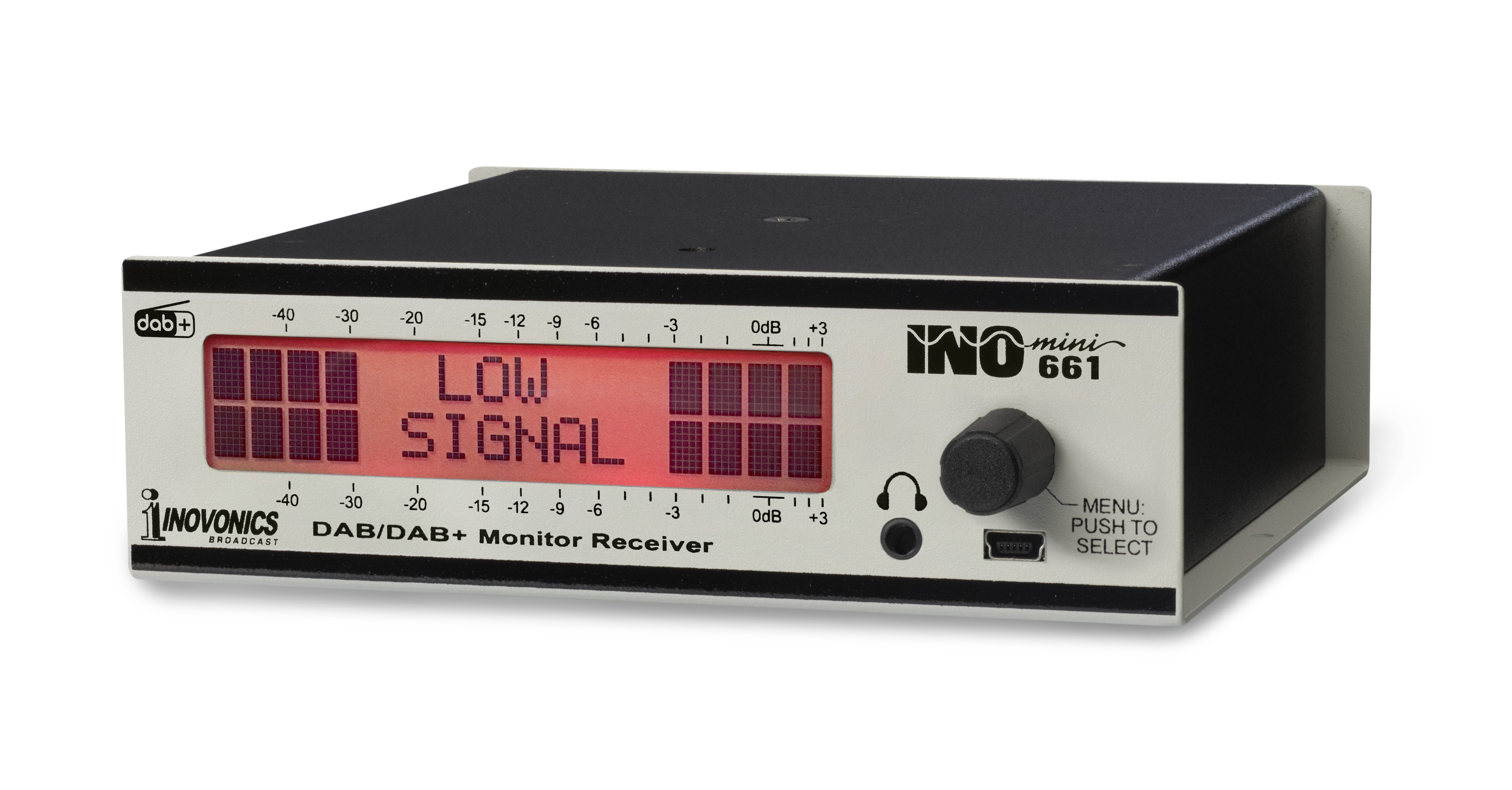

  • Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate DAB Loss, Low Signal and Audio Loss.

  • All receiver setup parameters are held in non-volatile memory.

  • When issued, free firmware updates are easily installed in the field.


  Online Demo Available

Specifications


Tuning Range

DAB Band III, Mode 1 (174.928MHz – 239.200MHz); all EBUsanctioned frequency allocations (Blocks 5-12, A-D) plus Block 13 A-F

Antenna Input

75-ohm (BNC)

Sensitivity

10dBμV for error-free reception

Audio Codecs

MPEG-1, Audio Layer 2 (MP2); HE-AAC (AAC+)

Audio Response

±0.25dB, 20Hz – 20kHz

Signal Parameters Displayed

FQ (FIC Quality), RF (RSSI), SNR, CNR

Metadata Displayed

Ensemble Label, Component List & ID, Service List & ID, Dynamic Label, PTY, Sample Rate, Bit Rate, Gain Mode, Service Mode, Protection Info, Current CU & Address, Country, Language, Time & Date

Program Audio Outputs

  • Balanced Analog (XLR) Left and Right outputs are adjustable from –15dBu to +15dBu in 0.2dB steps.
  • AES Digital (XLR) output at 44.1kHz is adjustable from –30dBFS to 0dBFS in 0.2dB steps.
  • Headphone Jack (3.5mm TRS) has adjustable listening level.

Front-Panel Red-Flashing Alarms

  • DAB Loss: Fixed metrics determine loss of digital radio reception.
  • Low Signal: Alarm and reset trigger levels are independently adjustable relative to the RF signal level display.
  • Audio Loss: Alarm threshold is adjustable between 0dB and –40dB, and the alarm delay interval is adjustable between OFF and 120 seconds.
  • Alarm “Tallies”: Individual open-collector NPN transistor outputs to ground are programmable for logic polarity.

USB Port

The front-panel mini-USB port allows the quick uploading of firmware updates when issued.

Power Requirement

12VDC at 335mA; a universal 90 - 240 VAC inline switching power supply is included with the INOmini 661 receiver.

Mounting Options

An optional rack adapter accepts up to three INOmini modules in a 1U, 19-inch rack space. The 661 also may easily be fastened to any convenient surface with two small screws.

Size and Weight

4.6cm H x 14cm W x 14cm D; 1.8kg shipping weight

Environmental

Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
